Standoffs and Header (Bag 1) top

Insert Standoffs top

Note that there are two different ends on the plastic standoffs. The locking end has tabs with a right angle to prevent them from being removed after installation, while the non-locking end has smooth tabs. Insert the locking ends of the standoffs from the bottom of the PCB.

Populate 8-Pin Header top

Insert the 8-pin header into the holes marked “CON1.” Make sure to place the short, silver pins through the bottom of the PCB so that the PCB rests on the black plastic posts. Solder the header from the top of the PCB and do not trim the leads afterward.

Tape and Solder IC Socket top

Insert the IC socket so that the notches on the sockets align with the markings on the PCB. Secure in place with tape. Then flip the PCB over and solder in place. Remove the tape.

Resistors (Bag 2) top

Bend Resistors top

Bend the resistor leads 90 degrees at the body so they can be inserted into the PCB.

Sort Resistors top

Resistor sorting made easy! Enter a value to find the color bands, or enter your color bands to find the resistor’s value. Type in the value of the resistor you need and this tool will show you the corresponding color code.

Place Resistors top

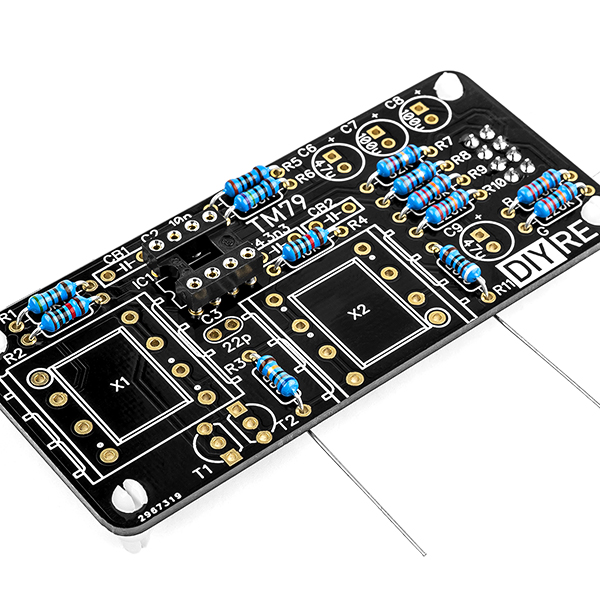

Place the resistors into their respective positions on the PCB. As you place each resistor, bend its leads against the bottom of the PCB so that it stays in place during soldering.

Solder Resistors top

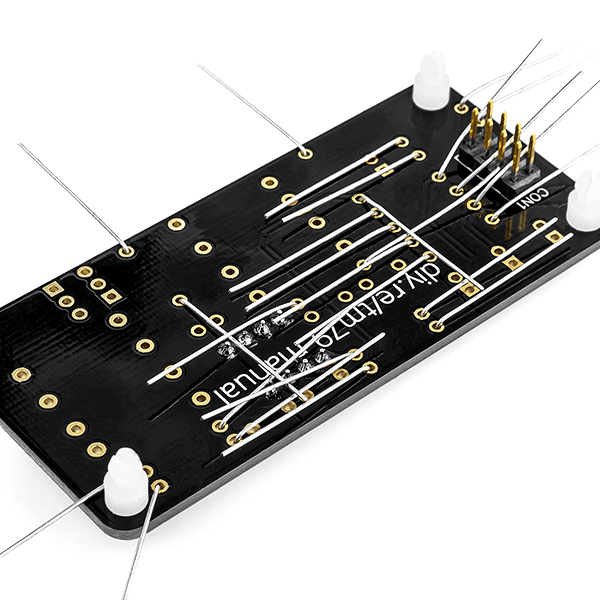

Solder the resistors to the PCB. Observe good soldering technique: heat the pad and lead for 2-3 seconds, apply a small bit of solder, and continue to heat the pad for another 2-3 seconds. The finished joints should be shiny and should have just enough solder to cover the pad entirely.

Trim Resistors top

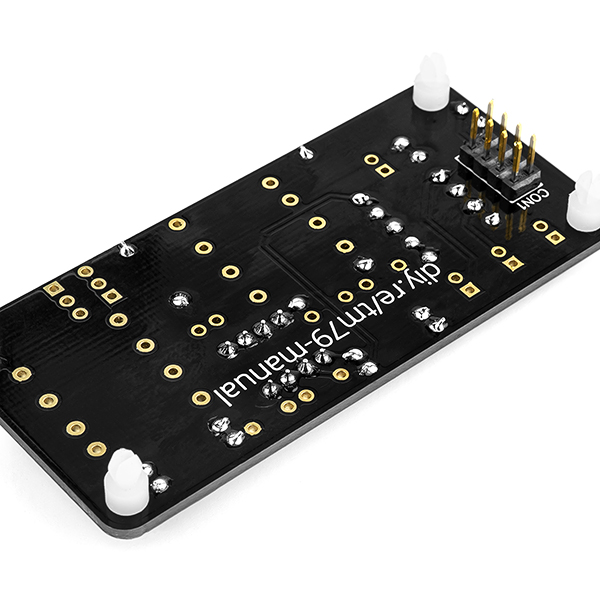

Use clippers to trim away the excess leads. Clip as closely as possible to the joint without clipping the joint itself.

Capacitors and Transistors (Bag 3) top

Populate Small Capacitors top

Place the smaller capacitors in their respective places. These capacitors are not polarized and therefore can be placed in either direction. Solder then trim the leads.

Populate Large Capacitors top

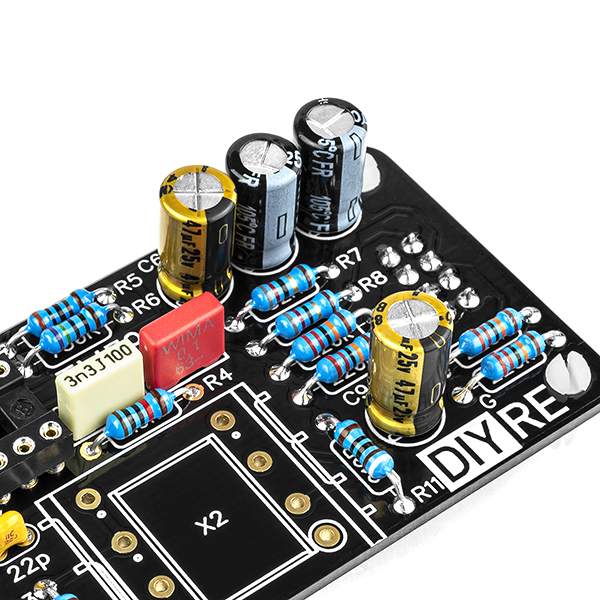

These capacitors are polarized, so they must be placed in a certain direction. The positive lead is slightly longer, while the negative lead is marked with a stripe on the body of the capacitor. Place the capacitors with the positive lead in the pad next to the "+" marking on the PCB. Double check their orientation, then solder and trim.

Populate Transistors top

There are two important things to note about transistors. First, the orientation: one side of the body is flat while the other is round. And second, the part number: carefully check the markings on the sorting sheet against those on the body before inserting them.

Identify the transistors, place them in the correct positions orientation, double check, and then solder and trim.

Transformers (Bag 4) top

Place Transformers top

Place the transformer in the X1 and X2 positions. Note that there's a small notch in the plastic near pin 1. Line this notch up with the corresponding one on the PCB, then solder the transformer to the PCB. To prevent damaging the transformer, leave 20 seconds between solder joints. This allows the coil wires time to cool down between joints.

IC (Bag 5) top

Place IC in Socket top

The leads of the IC must be slightly bent to fit perfectly into the sockets. Press one row of leads against a flat surface until they form a 90-degree angle with the body of the IC. Then do this for the other row.

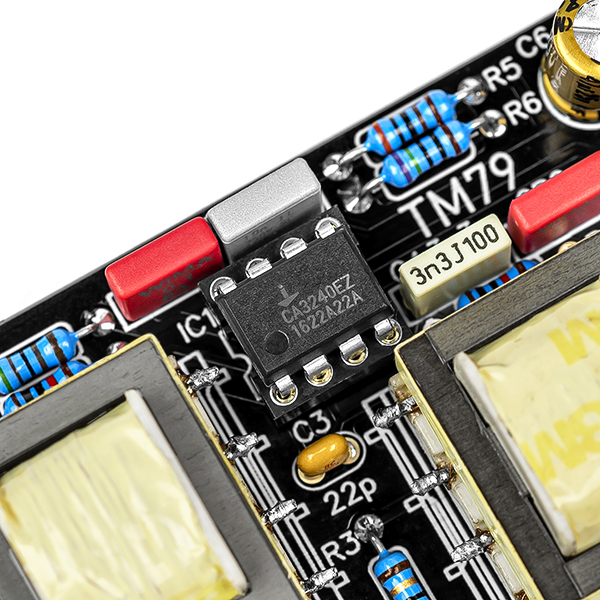

IC polarity is indicated by a dot or notch on one side of the body. Align this side with the notch in the socket. Place the IC in this direction, and press it completely into the socket.

Final Checks top

Before you wrap up, check the following things:

Capacitor orientation: Is the stripe on the cap on the opposite side from the "+" marking on the PCB?
Resistors: Are all the resistors in the correct positions?
IC orientation: Does the dot/notch on the IC align with the notches on the socket and PCB?
Transistor orientation: Does the shape of the transistor match the outline on the PCB?
Soldering: Is every solder joint shiny and clean? If one is cloudy or misshapen, try reheating it for 8 seconds and adding a tiny bit more solder.
Trimming: Are all of the excess leads trimmed down as close to the joint as possible?

Finished! top

All good? Congrats on finishing your build! Have a question or problem? Drop us a line.
